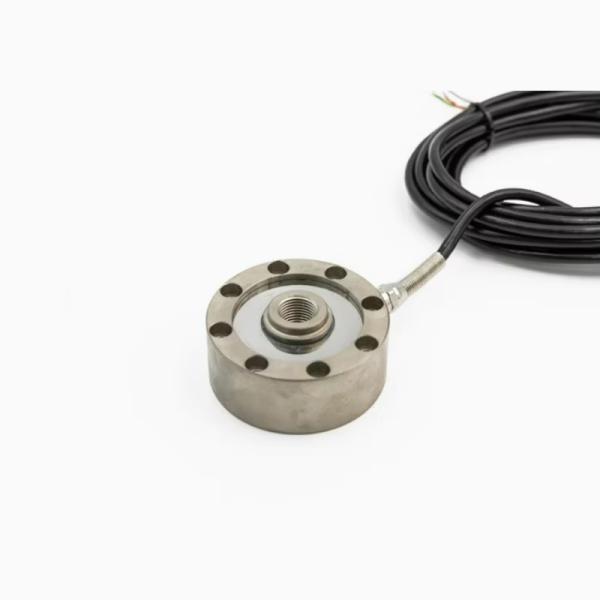

Stainless Steel Load Cell Miniature Compression 0.1-30t Force Sensor

  • 1
  • 2
  • 3

Brand Name : RUIJIA

Model Number : Rj

Certification : CE/ROHS

Place of Origin : CHINA

MOQ : 1

Price : $92-100

Payment Terms : ,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 2000pc/month

Delivery Time : 5-15 work days

Packaging Details : Wooden crate or cardboard box

Capacity : 20~1000kg

Reted output : 2.0±10%mV/V

Zero Balance : ±1%F.S.

Creep(30min) : ≤0.03%F.S.

Contact Now

Stainless Steel Load Cell Miniature Compression 0.1-30t Force Sensor

Stainless Steel Load Cell Miniature Compression 0.1-30t Force Sensor


Spoke pressure transducers are widely used in hopper scales, vehicle scales, rail scales and other electronic scales to do force analysis and measurement in various industrial weighing systems .

Spoke pressure sensor product features
1. Spoke type pressure sensor adopts imported foil strain gauge and elastic element to form the sensitive element;
2. The structure is compact and sturdy, easy to install, good stability;
3. Adopt the design of cut-off frequency interference, strong anti-interference ability; high sensitivity, accurate measurement;
4. Using cross shear beam structure, with good natural linearity;
5. Strong anti-bias load capability, high precision, low profile height, easy and stable installation.


Specifications Technique
Capacity 20~1000kg
Reted output 2.0±10%mV/V
Zero Balance ±1%F.S.
Creep(30min) ≤0.03%F.S.
Non-linearity ≤0.05%F.S.
Hysteresis ≤0.05%F.S.
Repeatability ≤0.03%F.S.
Input impedance 780±20Ω
Output impedance 700±10Ω
Temp.effect on output 0.05%F.S./10 C
Temp.effect on zero 0.05%F.S./10 C
Insulation resistance ≥5000MΩ/100V(DC)
Recommended excitation 10V
Maximum excitation 15V
Compensated Temp Range -10~40ºC
Operating Temp Range -20~70 ºC
Safe overload 150%F.S.
Ultimate overload 200%F.S.
Cable size 6x5000mm
Material >50kg=Alloy steel
50kg=Aluminium alloy
