25kg Cantilever Beam Load Cell Aluminum Material Weight Scale Sensors

Name: 25kg Cantilever Beam Load Cell Aluminum Material Weight Scale Sensors
Brand: ruijia
Price: 20 USD

Buy cheap 25kg Cantilever Beam Load Cell Aluminum Material Weight Scale Sensors product

Brand Name : ruijia

Model Number : RJ-6526

Place of Origin : china

MOQ : 1pc

Price : USD 20

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : Within 2-4 Weeks

Packaging Details : Standard export packaging

Capacity : 25

Sensitivity : 2.0±0.2 mV/V

Accuracy : 0.05 %FS

Insulation Resistance : ≥5000 MΩ（100VDC）

Zero Balance : ±1 %FS

Safe Overload(%F.S) : 120

Ultimate Overload (%F.S) : 150

Production : IP65

Cable specification : Ф3, 1.5 m

Material : Aluminum Alloy

Contact Now

Features

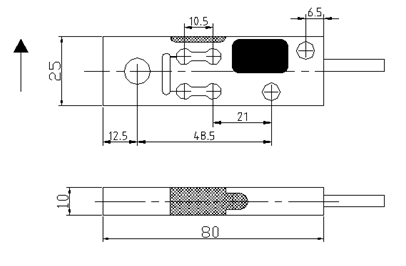

Dimension

25kg Cantilever Beam Load Cell Aluminum Material Weight Scale Sensors

Specification:

Capacity	Kg	25
Sensitivity	mV/V	2.0±0.2
Combined Error	%FS	0.1
Creep(15min)	%FS	0.05
Input Resistance	Ω	395±20
Output Resistance	Ω	350±5
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	±1
Temperature Effects on Span	%FS/10℃	0.02
Temperature Effect on Zero	%FS/10℃	0.017
Rated Temperature Range	℃	-10～+60
Operating Temperature Range	℃	-20～+80
Proposed Excitation Voltage	V	6～12
Allowed Excitation Voltage	V	3～15
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Protection		IP65
Material		Aluminum Alloy

Application

25kg Cantilever Beam Load Cell Aluminum Material Weight Scale Sensors

Process flowchart

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. When will you arrange the production?

We will arrange the production immediately after receiving your payment.

4. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
